Bag Making Machine

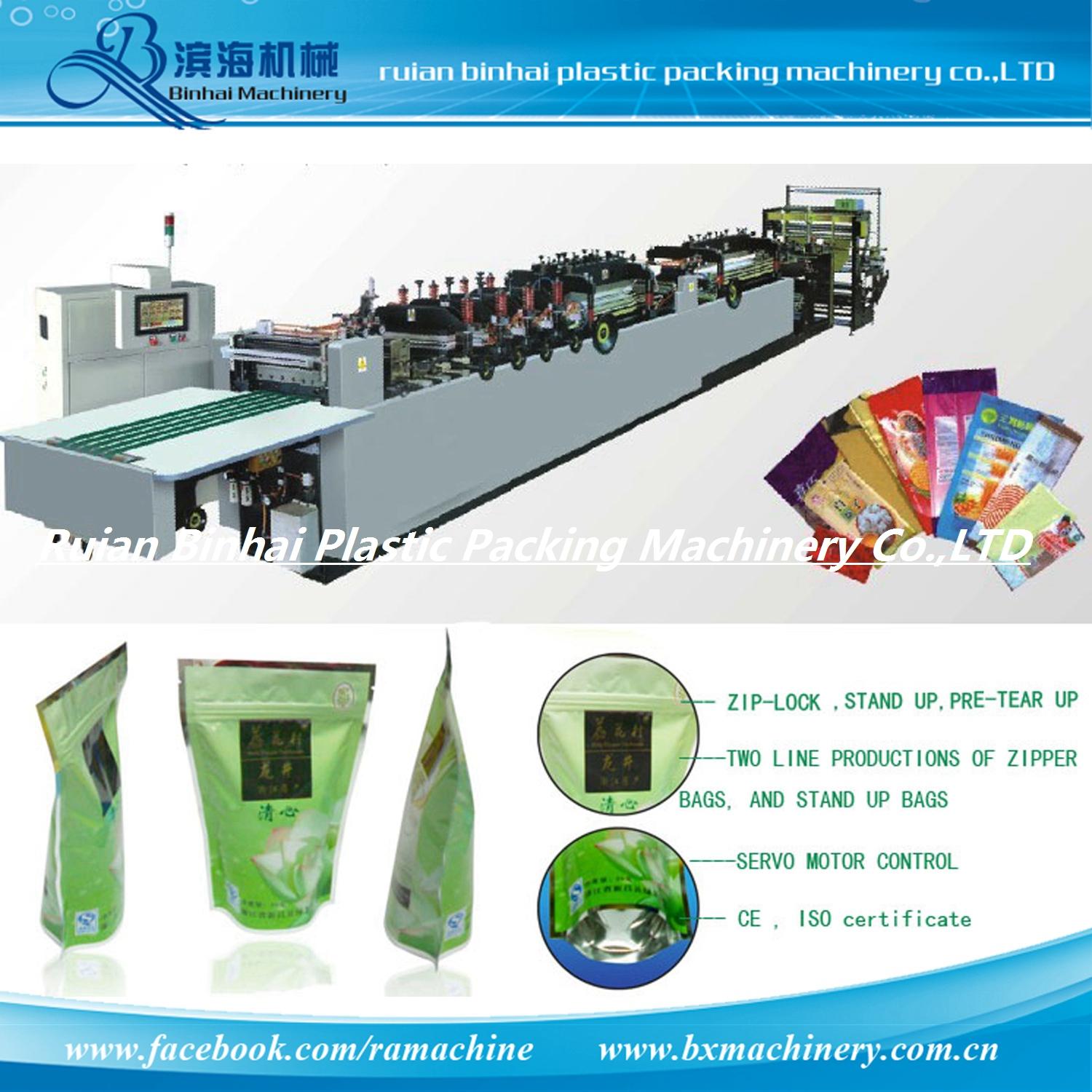

Stand Up Pouch Making Machine

  • Stand Up Pouch Making Machine
  • Stand Up Pouch Making Machine
  • Stand Up Pouch Making Machine
  • Stand Up Pouch Making Machine
  • Stand Up Pouch Making Machine
Model No.︰BHZD-600B
Brand Name︰BINHAI
Country of Origin︰China
Unit Price︰US $ 32000 / pc
Minimum Order︰1 pc
Share on:

 Total 20 Related Items
12345Next

Product Description

Features For Stand Up Pouch making machine
:

1.  Suitable for kinds PE laminated film ,Paper Laminated, Alu. Laminated,and co-  extrude film
2.  To produce three side seal bags, stand up pouch,zipper pouch,
3.  EPC and double photocell tracking for unwinder
4.  Unwinder with automatic tension control


Bags You can make on Stand Up Pouch making machine :

1.3 sides sealing bag
2. Centra sealing bag
3. Centra sealing and gusset
4. Sand up bag
5.Four Side Seal bags
6.zipper bags

Main Technical Parameters  For  Stand Up Pouch making machine




Model BHZD--600 BHZD-500
Max.Diam eter of roll material 600mm 600mm
Max.width of roll material 1200mm 1000mm
bag size width 70-600mm 70-500mm
bag size length 70-380mm x N ( N≤6) 70-380mm x N ( N≤6)
bag-making speed 30-150pcs/min 30-150pcs/min
Speed will be changed according to your bags
Temperature control Normal temperature to 3600C Normal temperature to 3600C
Total power 35kw 32kw
gas resource 0.6mPa(6kg/cm2 ) 0.6mPa(6kg/cm2 )
Cooling water 5L/min 5L/min
Machine weight 6000kg 5500kg
outline diameter L11505*W2400*H1865mm L11505*W2300*H1865mm





Optional:

1)  Double layer unwinder device
2)  Punching device for handle
3)  shaped pouch device

Zipper Plastic Doypack Pouch Making Machine




   Double Winders  when make big bags, or for quick film roll changing .
------ Double tension controller .
------ air shafts
------ Down winder auto loading .


Zipper Plastic Doypack Pouch Making Machine



If your bags is stand Up Bags, pls check your bags bottom is folded or patched .
Pls refer to below pictures .




Zipper Plastic Doypack Pouch Making Machine



Because those model machines is longer with many function ,if machine quality not good,
whether which step have wrong, will increase waste film. Buy our machines, offer you good machines,
and good sales-services , we have skillful technicians,electricians and sales persons .


1) If working well but Bags leakage,your inside film not suitable .
    You should use heatable film which have better Anti-pollution.
     For example .LDPE is Moderate Anti-pollution,EVA have better Anti-pollution when more VA.

2) Sometimes , bags printing ink will influence heating function .
    If your bags sealing not stronger but cannot find problem , you can check your bags ink Heat resistance.
    pay attension , metal ink should not be printed in the heating sealing part.

3) Protect your Raw material film roll , not be moisture, or your bags sealing part will have bubble or not smooth.

4) about bags length and cutting error , refer to our Operation Manual .


Zipper Plastic Doypack Pouch Making Machine




Certifications



Zipper Plastic Doypack Pouch Making Machine

Certifications of pouch bag making machine, If need other certificates , should tell us before shipping .

we shipped to USA, Turkey , Portugal , Span , Croatia ,Moldova , Colombia,Tailand , Indonesia ,United Arab Emirates.Russia ,IRAN , Ukraine , Bangladesh ,india,Sudan , Mexico , Africa ,Angola, Kenya , Algeria ,Ghana and other cities around the world.





Packaging & Shipping



Zipper Plastic Doypack Pouch Making Machine

Machine packed with stretch film , and plastic bag cover .
some parts will be packed with wooden case , such as punchers, cutters, chillers.



Company Profile

Zipper Plastic Doypack Pouch Making Machine



FAQ





Are you a factory or Trading Company
We are a factory with experienced exporting products. We also help clients
To look for products which they can not sure of.

Where is your factory Located
Our Factory Located in Ruian City ,Zhejiang Province ,China .
It is about 40minutes by plane from Shanghai, about 5 hours by train from
Shanghai .
We are pleasured to pick up you when you arrived .

How you work if I am not come to China
Usually , I will offer you our All Government Certificates (all Certificates are got after Government persons' Strict Investigation
to show that we are a true exist company,
Then I will show you machines that you want to buy on computer by video and pictures , So that If you have any questions or Good Ideas
on machines , we will discuss with engineers to offer you a well resolution .
When machines finished , If you are too busy to come To China , we can show you pictures and videos .If machines not good ,you can refuse
to pay us .
Surely , If it is no problem , you should pay us the rest 70% Before shipping .
The Whole Shipping Process We will keep in Touch with you by Email or Whatsapp .



Zipper Plastic Doypack Pouch Making Machine





IF Have more questions , Contact with me !!!
THE ENDING of Stand Up Pouch making machine...........THANKS FOR YOUR READING


Price Terms︰FOB NINGBO
Payment Terms︰TT
Packing︰STRETCH FILM , WOODEN CASE
Standards Certificate︰CE
